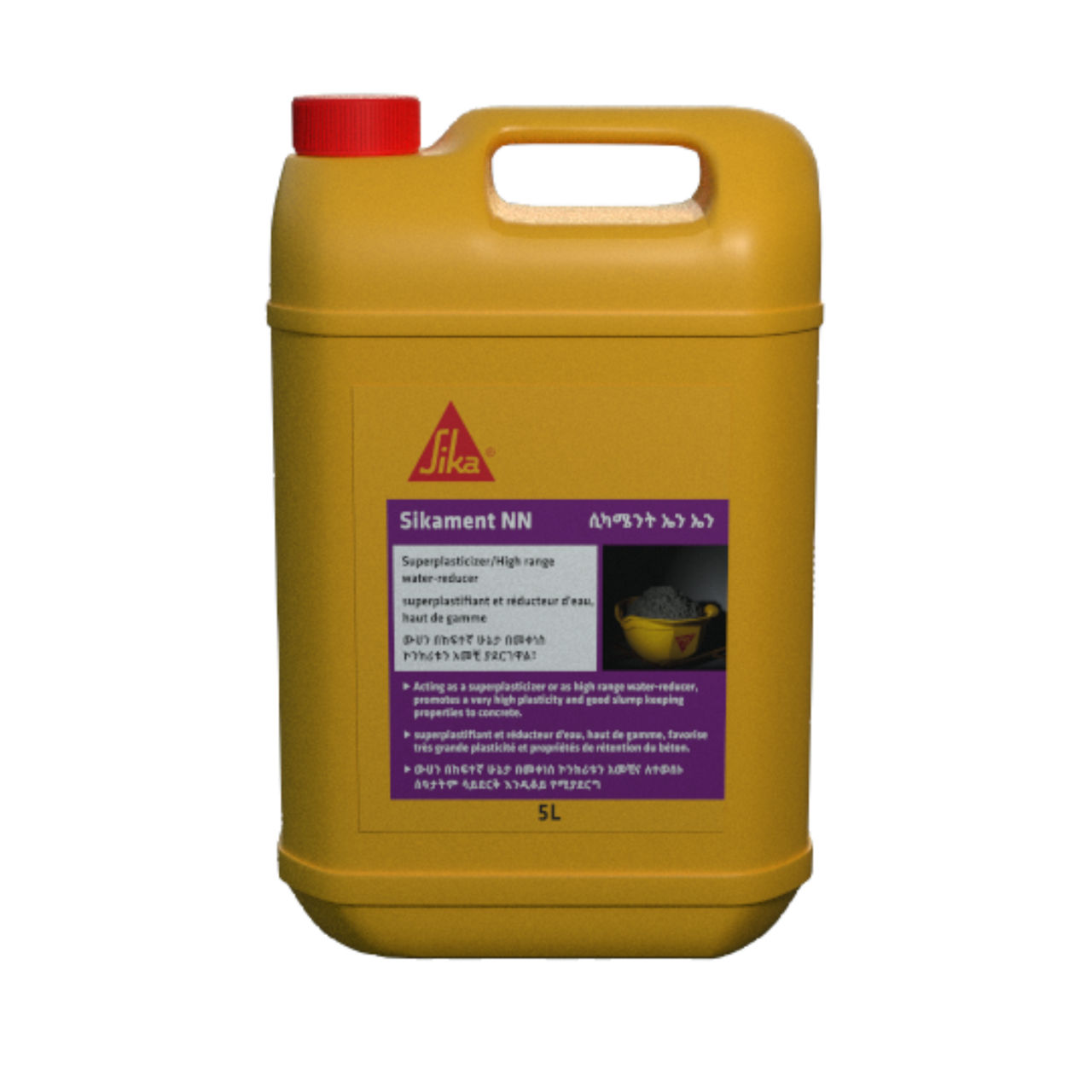

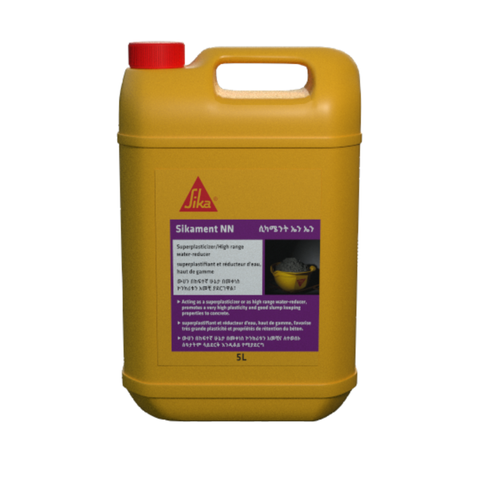

Sikament® NN

High Range Water Reducer / Superplasticiser Admixture For Concrete

Sikament® NN is a highly effective admixture for concrete especially suitable for the production o ff dual action liquid superplasticiser for the production of free flowing concrete and for the production of high strength concrete, especcially in hot climatic conditions.

As Superplasticizer
  • Improved workability
  • Improves concrete placement
  • Especially suitable for slender components with congested reinforcement
  • Improved compacting behaviour
  • Improves cohesion of the concrete mix which significantly reduces the risk of segregation
  As high range water-reducer
  • Up to 25% of water reduction.
  • Pronounced increase of final strength.
  • 16 hours compressive strenghth increased by up to 100%(depende on dosage).
  • Reduced permeability for water.
    Find a Distributor
    Product Data Sheet Show all documents

    Usage

    • Concrete with strong fluidity
    • High quality concrete
    • Sprayed concrete
    • Textured surface finishes
    • Pre-cast and pre-stressed concrete elements

    Advantages

    As Superplasticizer
    • Improved workability
    • Improves concrete placement
    • Especially suitable for slender components with congested reinforcement
    • Improved compacting behaviour
    • Improves cohesion of the concrete mix which significantly reduces the risk of segregation
      As high range water-reducer
    • Up to 25% of water reduction.
    • Pronounced increase of final strength.
    • 16 hours compressive strenghth increased by up to 100%(depende on dosage).
    • Reduced permeability for water.

      Packaging

      • 1000 litres IBC,
      • 200 litres Drum,
      • 20 litres Jerrycan,

      Colour

      Dark brown

      Product Details

      Sustainability / Certifications / Approvals

      APPROVALS / CERTIFICATES

      Complies with ASTM C 494 type F / EN 934-2
      Product Information

      Composition

      Naphthalene formaldehyde sulphonate

      Shelf life

      12 months from date of production

      Storage conditions

      The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +10 °C and +45 °C. Always refer to packaging.

      Density

      1.2 ± 0.03

      pH-Value

      8.5 ± 1

      Total chloride ion content

      < 0.1% (EN 934-2)
      Technical Information

      Concreting guidance

      The standard rules of good concreting practice, concerning production and placing must be followed.
      Laboratory trials must be carried out before concreting on site, especially when using a new mix design or producing new concrete components.
      Fresh concrete must be cured properly and curing applied as early as possible.

      Application

      Application Information

      Dispensing

      Sikament® NN must be measured using suitable equipment then added to the batching gauging water or both added together at the same time into the  batching plant concrete mixer.

      Sikament® NN can also be added to the concrete immediately prior to discharge and after further mixing has taken place for at least three more minutes.

      Compatibility

      Sikament® NN may be combined with many other Sika products. Trials must always be carried out before combining products in specific
      mixes.
      Consumption

      Recommended dosage

      0.5 - 3% by weight of cement, depending on the requested performance of the concrete.

      It is advisable to carry out trial mixes to establish the exact dosage rate required.
      Application steps

      CLEANING OF EQUIPMENT

      Clean all tools and application equipment with water immediately after use.
